Aguilar OBP-3SKPP 3-band Stacked Boost/Cut Onboard Bass Preamp with Push Pull

Bass Pickups

Aguilar OBP-3SKPP 3-band Stacked Boost/Cut Onboard Bass Preamp with Push Pull

  • Brand:Aguilar
  • Category: Bass Pickups
Availability: In Stock
$179.99
Compare

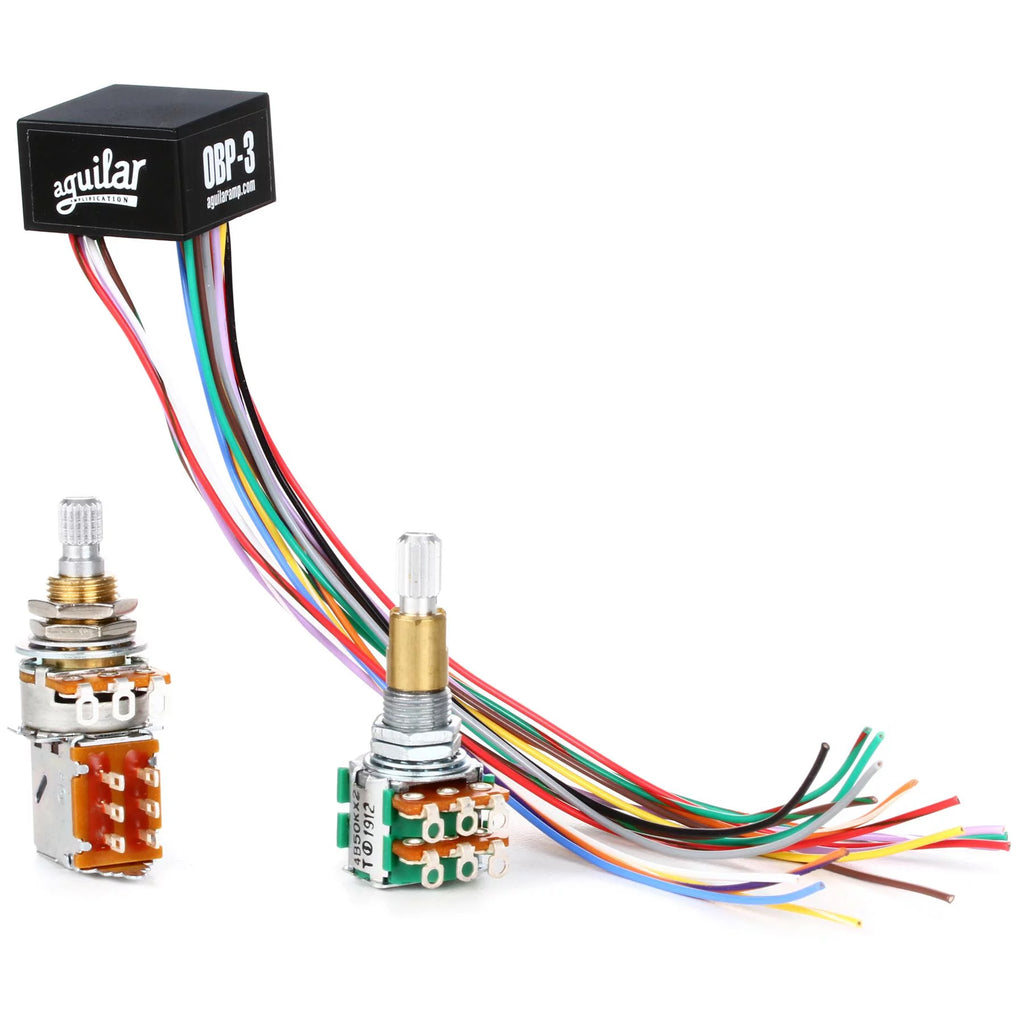

The OBP-3 SK/PP is a three-band boost and cut bass, mid, and treble preamp, that has high headroom, low distortion, and the ability to reproduce the full dynamic range of your instrument. The OBP-3 has multiple wiring options and can be wired with either a push/pull pot OR mini-toggle for midrange frequency selection. OBP-3 SK/PP kit includes stacked Treble/Bass pot and separate Mid pot. Mid pot is push/pull for Midrange frequency selection. The OBP-3 is Aguilar’s most flexible onboard preamp design, providing +/-18dB of cut and boost at 40Hz, +/- 16dB of cut and boost at either 400Hz or 800Hz and +/- 16dB of treble cut and boost at 6.5 kHz.

Features:

• OBP-3SK/PP: Stacked Treble/Bass pot and separate Mid pot. Mid pot is push/pull for Mid freq.
• Bass control: plus/minus 18 dB @ 40 Hz
• Mid control: plus/minus 16 dB @ 400Hz or 800 Hz. User selectable frequency center
• Treble control: plus/minus 16 dB @ 6.5 KHz
• Input impedance: 1 meg ohm
• Output impedance: 100 ohm 9 or 18 volts operation
• Distortion: .019 into 10k ohm load
• Noise: -95 dBm unweighted
• Battery life: 324 hours
